Improving Semiconductor Yields: NH3 Ultra-High Purity Gas Panel and Voltage Regulator Solutions for CVD Silicon Nitride Processes



In the evolution of semiconductor manufacturing towards 3nm and more advanced nodes, silicon nitride (SiNx) films serve as critical sidewalls, etch stop layers, and passivation layers, and their quality directly determines transistor yield and reliability. In plasma-enhanced chemical vapor deposition (PECVD) or low-pressure chemical vapor deposition (LPCVD) processes, ammonia (NH3) is the primary nitrogen source, and its microscopic impurity control and transport stability face unprecedented challenges. This article will delve into the issues related to CVD silicon nitride processes.NH3 Ultra-High Purity Gas Delivery SystemThe study focuses on the integrated design of gas panels, the core technologies and innovative solutions of diaphragm voltage regulators, and explains how precise gas control can effectively improve thin film uniformity and reduce defect density, thereby improving the overall semiconductor yield.

The key role of silicon nitride thin films and the challenge of NH3

With the widespread use of FinFET and gate-all-around (GAA) structures, the conformality, stress matching, and dielectric strength of silicon nitride films have become crucial. During silicon nitride deposition, ammonia (NH3) reacts with silane (SiH4) or dichlorosilane (DCS).

However, NH3 is a chemically reactive and corrosive gas. During ultra-high purity (UHP) gas delivery, improper gas panel design or insufficient regulator performance can easily lead to the following problems, directly impacting yield:

1. Particulate pollution: Residual moisture in the pipeline reacts with NH3 to form ammonium salt particles, or metal debris generated by valve/pressure regulator operation. Once these particles enter the reaction chamber, they will directly cause pinholes or protrusions in the membrane.

2. Flow/pressure fluctuations: Unstable pressure control can disrupt the process window, leading to uneven silicon nitride film thickness or an imbalance in the silicon-nitrogen ratio (Si/N), which in turn affects film stress.

3. Metal contamination: Poor material quality of gas contact components can lead to the precipitation of heavy metals such as Fe, Ni, and Cr. These impurities can diffuse into the silicon substrate, causing device leakage.

Therefore, developing a solution for ultra-high purity gas panels and regulators tailored to the characteristics of NH3 is the first line of defense to ensure process yield.

one,NH3 Ultra-High Purity Gas PanelThe core logic of integrated design

The gas panel is the core of the gas cabinet or VMB (valve box), responsible for purifying, pressurizing, and distributing the NH3 gas source to the reaction chamber. Considering the corrosiveness and purity requirements of NH3, the panel design must adhere to the following principles:

1. Surface roughness and passivation treatment

NH3 has a strong adsorption capacity for water molecules. In order to reduce the retention and desorption of gas on the pipe wall, the inner walls of the gas panel pipes and components must be electropolished (EP) to achieve a surface roughness of 5 Ra (microinch) or even lower.

• Innovation points: In response to NH3, some high-end solutions employ "in-situ passivation" technology, which involves subjecting 316L stainless steel to a special oxidation treatment before assembly to form a dense Cr2O3 layer. This prevents NH3 from directly corroding the metal substrate, thereby inhibiting the formation of metal chlorides.

2. Flow path design and dead zone control

The traditional three-valve manifold structure (isolation valve-pressure regulating valve-isolation valve) needs optimization in NH3 systems. Any "dead leg" will become a breeding ground for impurities and particles.

• Optimization plan: An integrated pneumatic circuit module is adopted. The valve seat, filter, and pressure regulator are integrated into a single metal module, minimizing welds and joints. This design shortens the purging path, reduces leakage points caused by thermal cycling or vibration, and ensures the dynamic cleanliness of NH3 delivery.

3. Heating and heat tracing system

Under low pressure, NH3 readily undergoes phase transitions or adsorption. Integrating a constant-temperature heating system (typically maintained at 40°C-50°C) into the gas panel is crucial. This not only prevents ammonium salts from crystallizing on the regulator diaphragm but also reduces the impact of gas viscosity variations on control accuracy, ensuring a constant inlet pressure for the mass flow controller (MFC).

II. Pressure Regulator: The "Heart" of Pressure Control

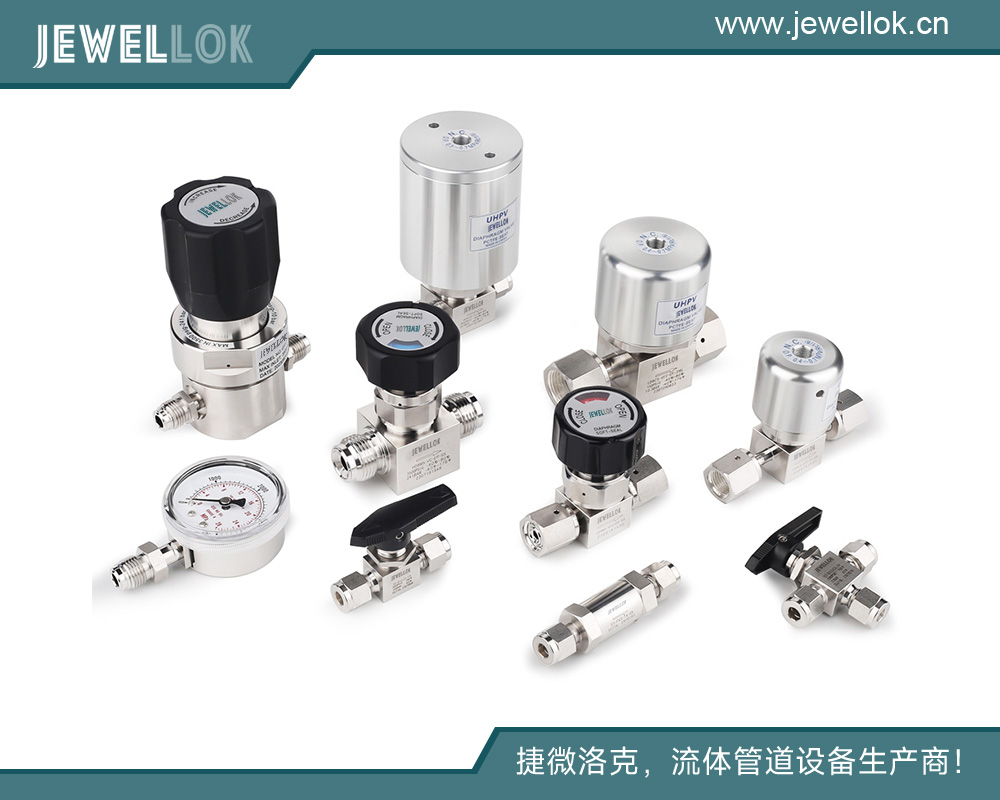

In gas control panels, the regulator is the most precise mechanical component and crucial for maintaining process stability. For CVD silicon nitride processes, we need ultra-high purity performance.Diaphragm voltage regulatorInstead of a piston type.

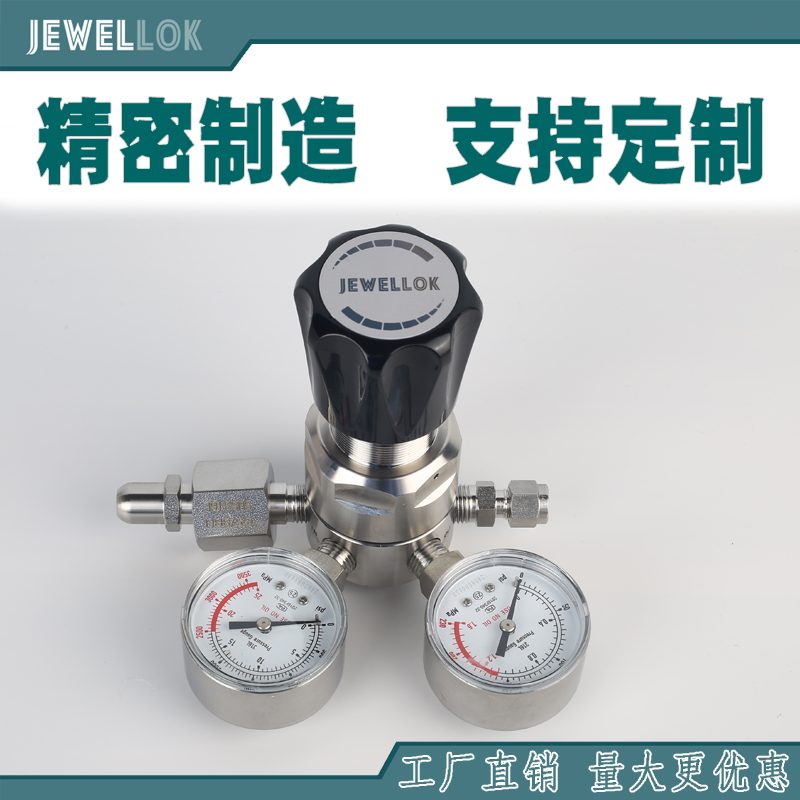

1. Working principle and advantages of diaphragm voltage regulators

Diaphragm pressure regulators use a pressure-sensitive diaphragm to drive a valve stem and adjust the valve opening.

• Advantages of ultra-high purity: Compared to piston-type pressure regulators, diaphragm-type regulators achieve absolute isolation between the valve body and the actuator, eliminating friction particles and permeation contamination caused by piston seals. For gases like NH3, which are extremely sensitive to impurities, the diaphragm structure ensures the purity of the delivered gas.

2. Key Design Elements

A. Diaphragm Material and Structure
The diaphragm is the "heart" of the voltage regulator. Traditional nylon or rubber diaphragms age and permeate in an NH3 environment, and have now been largely replaced by metal diaphragms.

• Technological Frontier: useHastelloy or Elgiloy alloysThe fabricated diaphragm is made of a material with extremely high fatigue strength and resistance to ammonia corrosion. The diaphragm thickness is typically between 0.1mm and 0.2mm, and through precise lamination and welding, both sensitivity and pressure resistance are ensured.

B. Valve seat material
The valve seat is crucial for shutting off the gas supply. In NH3 applications, the valve seat material needs to withstand frequent shut-off impacts without generating debris.

• solution: SelectPCTFE (polychlorotrifluoroethylene) or Vespel (polyimide)PCTFE exhibits good dimensional stability at low temperatures, while Vespel demonstrates extremely low exudation and abrasion resistance. Special care should be taken to avoid using materials with excessively high fluorine content that may undergo side reactions with NH3 under specific conditions, especially when dealing with NH3.

C. Pressure control accuracy
In the silicon nitride process, even small fluctuations in pressure can cause changes in the deposition rate.

• Innovative technologies: IntroductionPneumatic pilot-operated pressure regulating structureTraditional direct-acting pressure regulators experience outlet pressure drift (drop) when the flow rate changes significantly. In contrast, pilot-operated pressure regulators use a small pilot valve to sense downstream pressure changes and drive the main valve, stabilizing the outlet pressure control accuracy within ±0.5% of the set value. This is crucial for maintaining the stability of RF glow discharge within the PECVD chamber.

III. Solution: The actual improvement in yield through system integration

Integrating the aforementioned ultra-high purity panel with a high-precision voltage regulator forms a complete gas solution for CVD silicon nitride processes, which improves yield in the following quantitative dimensions:

1. Reduce defect density

By employing a metal diaphragm voltage regulator and EP-grade piping, combined with an optimized flow path design, the system can control the increase in particles larger than 0.1μm to <10 particles/cubic meter. This means that particulate contamination on the wafer surface is significantly reduced, directly reducing "nucleation point" defects on the silicon nitride film, thereby improving the yield after patterning.

2. Improve film thickness uniformity.

Precise pressure control (steady-state accuracy ±0.5%, with no overshoot) ensures a constant pressure delivered to the MFC inlet. In PECVD processes on 300mm wafers, combined with multi-point temperature compensation, the on-wafer uniformity of the silicon nitride film can be improved from the traditional 3% to [a higher level].Within 1.5%This is of great significance for the precise control of the FinFET sidewalls—uneven sidewall thickness can lead to deviations in the subsequent ion implantation angle, affecting the stability of the threshold voltage (Vt).

3. Ensure process repeatability.

Batch repeatability is the cornerstone of yield management. The low hysteresis characteristic of the pilot-operated pressure regulator ensures extremely short pressure recovery time and precise return during process start-up and shutdown for each batch. Combined with the nitrogen purging sequence on the automatic valve panel, it ensures that the regulator inlet state is consistent every time the NH3 gas source is turned on, thereby minimizing the batch standard deviation (Stdev).

4. Extend the equipment maintenance cycle (MTBM)

The corrosion-resistant Hastelloy diaphragm and PCTFE seat significantly extend the maintenance-free life of the regulator. Traditional rubber diaphragms may require replacement every 3-6 months, while the all-metal, high-performance polymer solution can extend maintenance intervals to [missing information].12-18 monthsThis not only reduces equipment downtime (OEE improvement) but also avoids the risk of human-caused contamination introduced by frequent disassembly and reassembly of pipelines.

IV. Future Outlook: Intelligentization for Next-Generation Processes

With the advent of GAA (Glass Adhesive Acrylic Atom) and CFET (Complementary Field Effect Transistor) technologies, atomic layer deposition (ALD) silicon nitride (SiN) technology has gradually become mainstream. This places higher demands on NH3 gas delivery—extremely fast pulse response and extremely low dead volume.

The future solution will beIntelligent gas panel :

1. Digital Twins and Predictive Maintenance: Sensors are integrated into the pressure regulator to monitor the position and stress changes of the diaphragm in real time. Algorithms predict valve seat wear and provide early warnings to avoid mass scrapping due to sudden component failure.

2. Ultra-high response speed: To address the rapid pulses of the ALD process, we developed an ultra-high-speed pressure regulator driven by piezoelectric or magnetostrictive methods to replace the traditional pneumatic actuator, reducing the pressure build-up time to the millisecond level.

Conclusion

In the "microscopic world" of semiconductor manufacturing, yield is the accumulation of every detail. The NH3 gas delivery in the CVD silicon nitride process, seemingly just one link in the process chain, is actually the cornerstone determining film quality. By employing an ultra-high purity gas panel that integrates an electropolished surface, a single flow path, a Hastelloy diaphragm regulator, and intelligent heating, manufacturers can effectively tame the chemical properties of NH3, minimizing particulate and metal contamination in the gas and controlling pressure fluctuations to a minimum.

This is not only an advancement in equipment engineering, but also another successful breakthrough in yield limits. In today's world, where Moore's Law is slowing but process complexity is increasing exponentially, focusing on the purity and control of every single gas molecule is the only way for the semiconductor industry to move towards higher performance and higher reliability chips.
