Highly corrosive gases (such as Cl₂, HCl, HF, NH₃, and HBr) are widely used in industries such as semiconductor manufacturing, fine chemicals, photovoltaics, and specialty gas transportation. These gases possess strong oxidizing properties, high corrosiveness, and potential toxicity. Leaks or system failures can not only damage equipment but also potentially lead to serious safety accidents. Therefore, ensuring...Highly corrosive gas valve systemSafety and reliability have become one of the core issues in the field of industrial gas control.

This article will provide a systematic analysis from the aspects of material selection, structural design, sealing technology, manufacturing process, system integration and operation and maintenance management.

I. Material Selection: The Foundation of Safety

Materials are the primary factor determining the corrosion resistance of valve systems. Different corrosive gases exhibit significantly different chemical reaction characteristics, necessitating targeted material selection.

1. Commonly Used Corrosion-Resistant Materials

• Stainless steel (316L/316L VAR)Suitable for most weakly corrosive gases, but pitting corrosion may be present in halogen gas environments.
• Hastelloy C-22 / C-276Excellent resistance to oxidation and chloride corrosion.
• Nickel-based alloys (Monel, Inconel)Suitable for highly corrosive environments such as those containing hydrogen fluoride.
• PTFE/PFA lining materialWidely used in valve body linings to provide chemical inert protection.

2. Material Selection Principles

• Chemical compatibility analysis based on gas type and concentration
• Considering the effects of temperature and pressure on the corrosion rate of materials
• Avoid electrochemical corrosion caused by contact between different metals

Appropriate material selection can reduce the risk of failure from the source and is the first line of defense for system reliability.

II. Structural Design: Key to Leakage Prevention and Stable Operation

In highly corrosive environments, valve design must not only ensure fluid control functions, but also take into account sealing and durability.

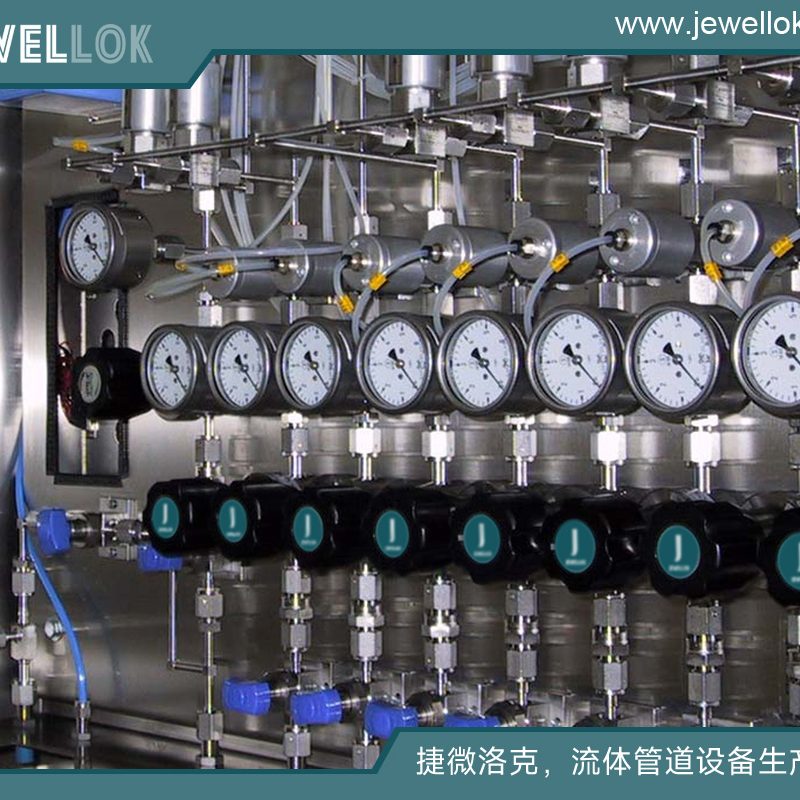

1. Advantages of Diaphragm Valve Structure

Diaphragm valves are most widely used in corrosive gas systems, and their advantages include:

• The fluid is completely isolated from the valve stem to prevent corrosion transmission.
• Zero-leakage design (especially suitable for ultra-high purity gas systems)
• Fewer dead zones reduce gas residue and pollution.

2. Minimal blind spot design

• Optimized flow channel design to avoid gas stagnation
• Reduce the complexity of the internal cavity structure to prevent corrosion buildup.

3. Vibration and fatigue resistance design

• Strengthen valve body structure
• Optimize the life cycle of elastic elements (such as diaphragms)

III. Sealing Technology: The Core of Leakage Prevention

Valves for highly corrosive gas systemsOne of the most critical risks is leakage, so sealing technology is crucial.

1. Metal seal vs. soft seal

• Metal-to-Metal SealHigh temperature and corrosion resistant, suitable for high-end applications.
• Soft seals (PTFE, PCTFE)It has good sealing performance, but attention should be paid to the aging problem.

2. Double-sealed structure design

• Main seal + secondary seal (Backup Seal)
• Provides redundancy protection to prevent single point of failure.

3. Sealing Inspection Standards

• Helium Leak Test
• The leakage rate can be controlled at the level of 10⁻⁹ mbar·L/s.

IV. Manufacturing and Surface Treatment Processes

Even with reasonable materials and design, substandard manufacturing processes can still affect system performance.

1. Surface roughness control

• Inner surface Ra ≤ 0.25 μm (high-purity gas system)
• Reduce corrosion adhesion points

2. Electropolishing

• Removing microburrs
• Improve corrosion resistance
• Reduce particulate pollution

3. Cleaning and Cleanroom Assembly

• Ultrasonic cleaning
• Cleanroom assembly (Class 100 / ISO 5)
• To prevent pollution from triggering chemical reactions

V. System Integration and Security Design

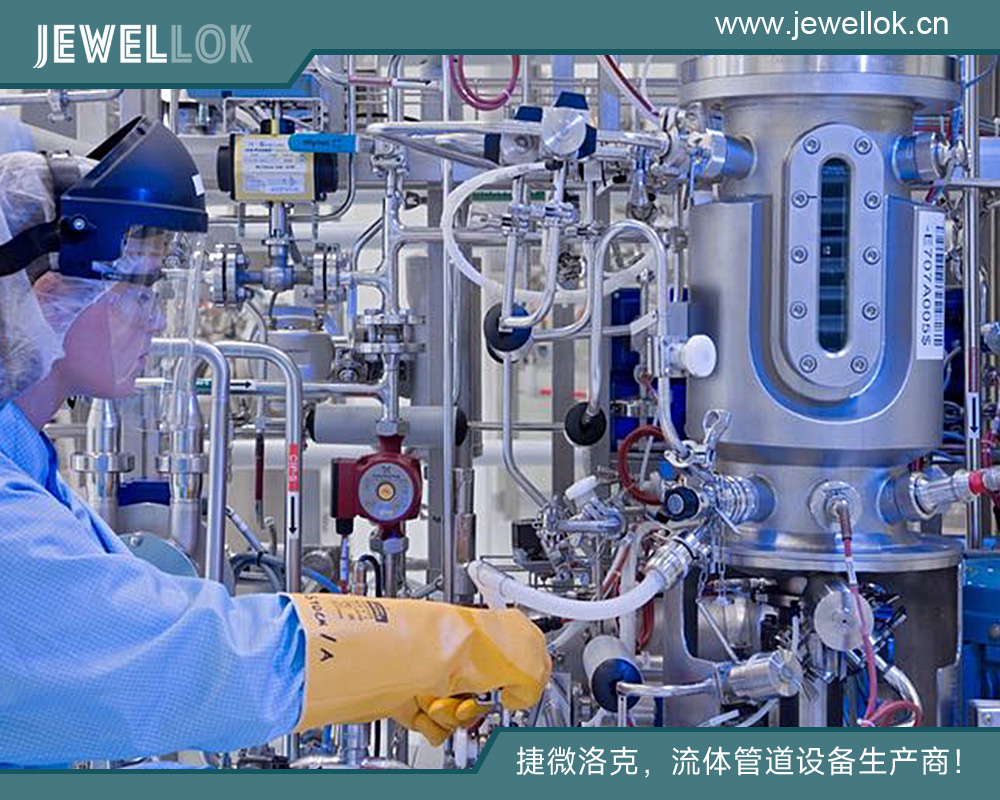

Valves are only one part of the system; the design of the overall gas delivery system is equally crucial.

1. Redundancy and Isolation Design

• Double Block & Bleed
• Emergency Shut-off Valve

2. Gas monitoring system

• Install gas leak detector
• Real-time monitoring system pressure and flow

3. Automated control

• PLC or DCS system integration
• Achieve remote control and alarm linkage

VI. Installation and Maintenance Management

Even high-quality valve systems can have reduced safety if they are not installed and maintained properly.

1. Installation Specifications

• Stress-avoiding installation
• Use compatible sealing materials (such as VCR connectors).
• Ensure pipeline alignment

2. Regular maintenance and inspection

• Periodic leak detection
• Replace aged seals
• Check valve opening and closing performance

3. Operator training

• Familiarity with gas properties and emergency measures
• Adhere to standard operating procedures (SOPs).

VII. Standards and Certification

To ensure system security, it must comply with international and industry standards:

• SEMI Standards (Semiconductor Industry)
• ISO 15848 (Industrial valve leakage standard)
• CGA (Compressed Gas Association) Standard

Compliance with standards is not only a requirement for compliance, but also a guarantee of system reliability.

VIII. Common Risks and Countermeasures

1. Corrosion perforation

CauseMaterial mismatch or long-term corrosion
对策Upgrade materials and add a protective coating.

2. Seal failure

Cause: Aging or mechanical fatigue
对策Replace seals regularly.

3. Accumulation of micro-leakage

CausePoor connection or assembly error
对策High-precision assembly and inspection

Conclusion

Highly corrosive gas valvesThe safety and reliability of a system is a comprehensive issue involving materials science, mechanical design, manufacturing processes, and systems engineering. Only through strict control of the entire process, from material selection, design, and manufacturing to installation and maintenance, can risks be effectively reduced and production safety ensured.

With the continuous development of high-end manufacturing, the requirements for gas control systems are also increasing. In the future, with the application of new materials, new processes, and intelligent technologies, valve systems for highly corrosive gases will develop towards higher safety, longer lifespan, and greater intelligence.
